U-BRS SYSTEM

U-BRS: SUPPORT SYSTEM
Practical and functional, the U-BRS system offers a complete structure for the elevated installation of outdoor space.

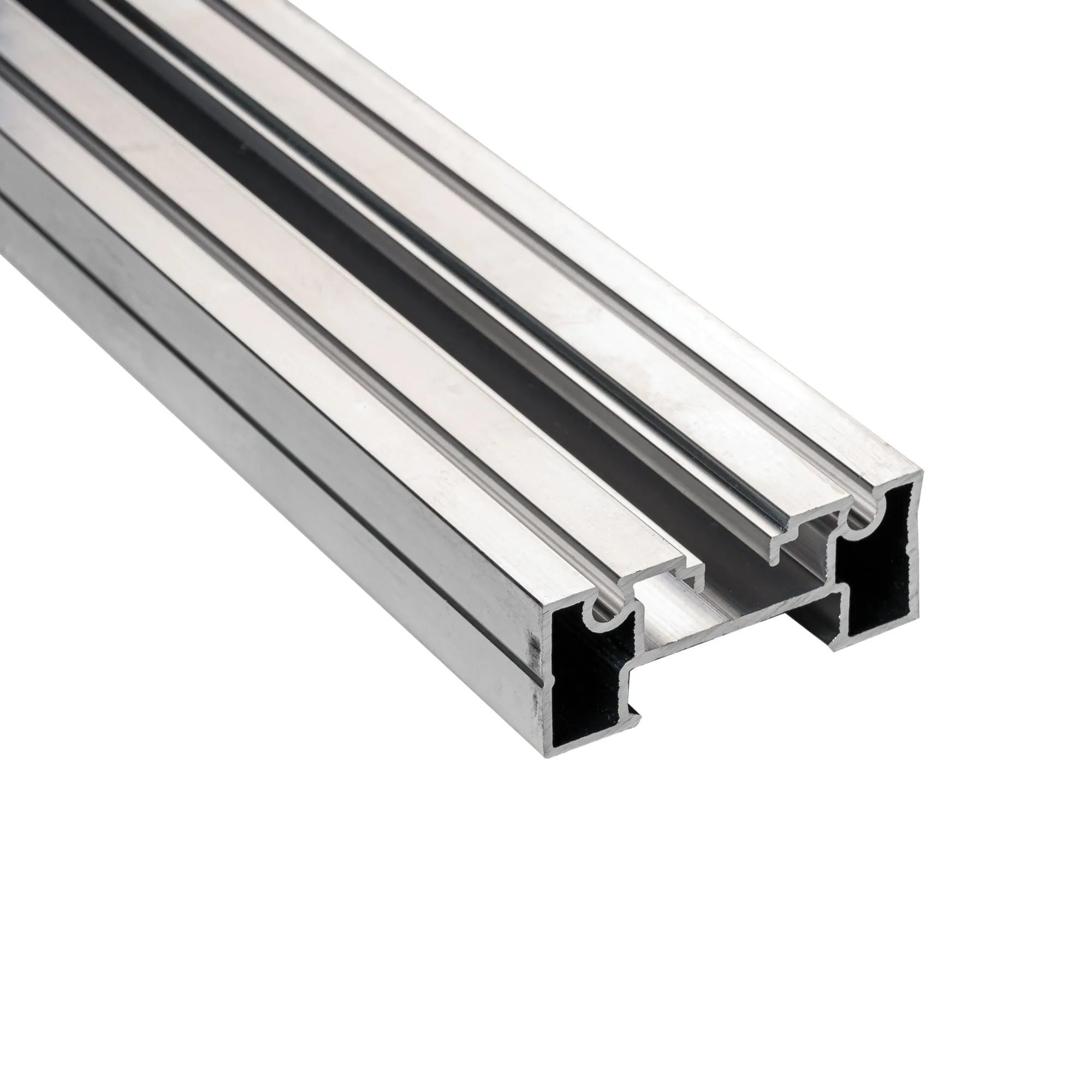

The system includes height-adjustable polypropylene pedestals, reinforced aluminium profiles and spacer tabs that provide a gap between the pavers. The system is completed by finishing accessories able to meet all design requirements.

THE U-BRS RANGE

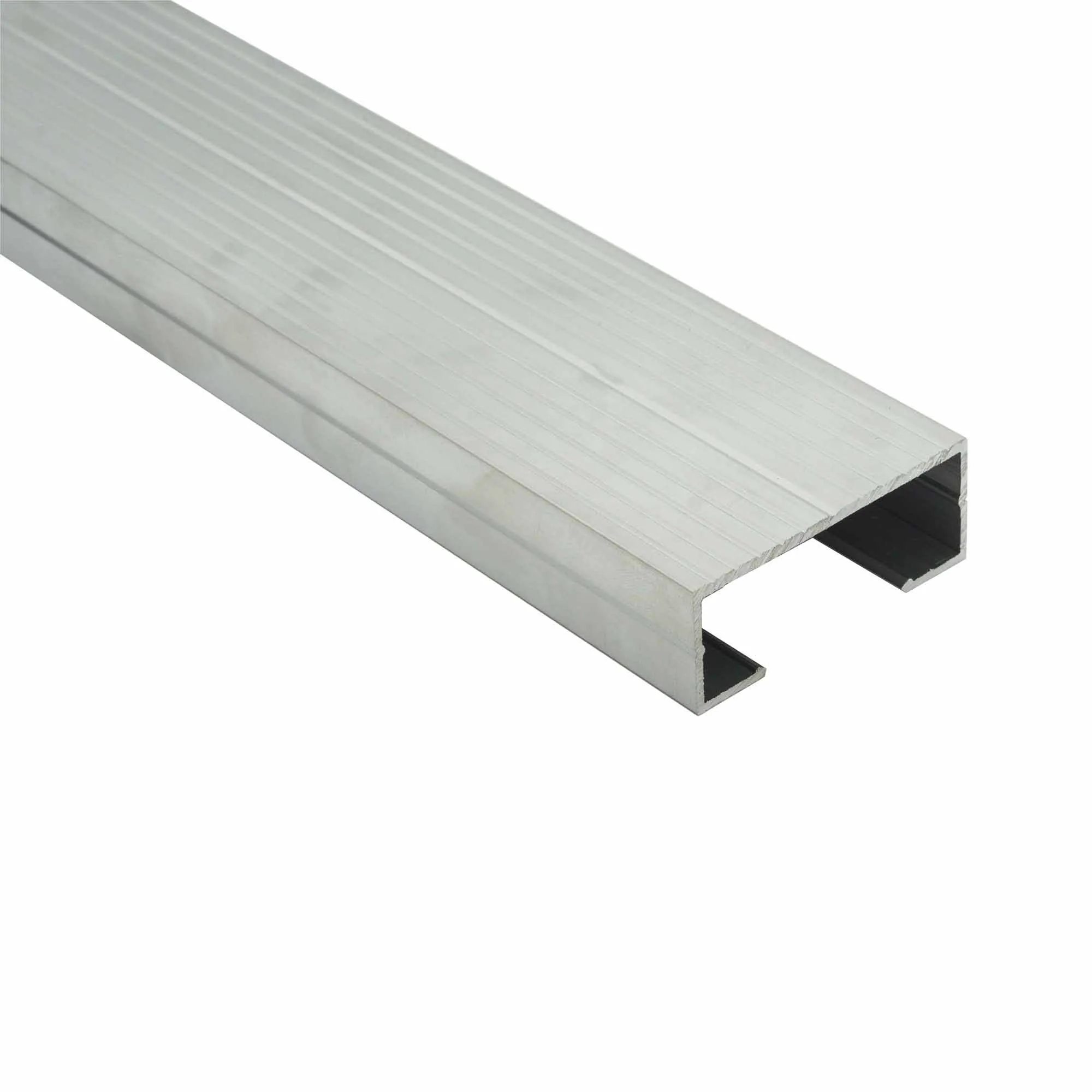

U-BRS-WOOD-M

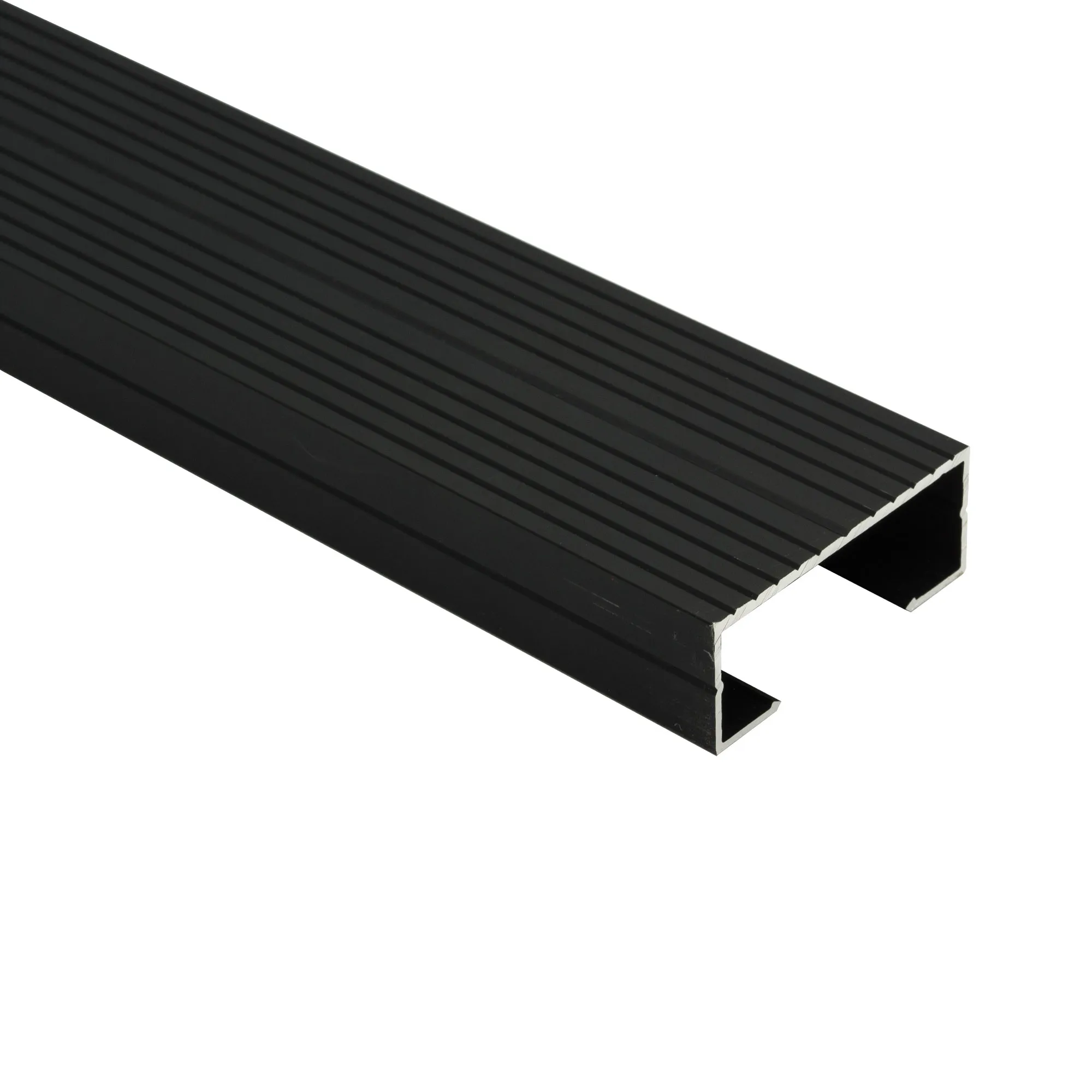

U-BRS-WOOD-B

U-BRS-M

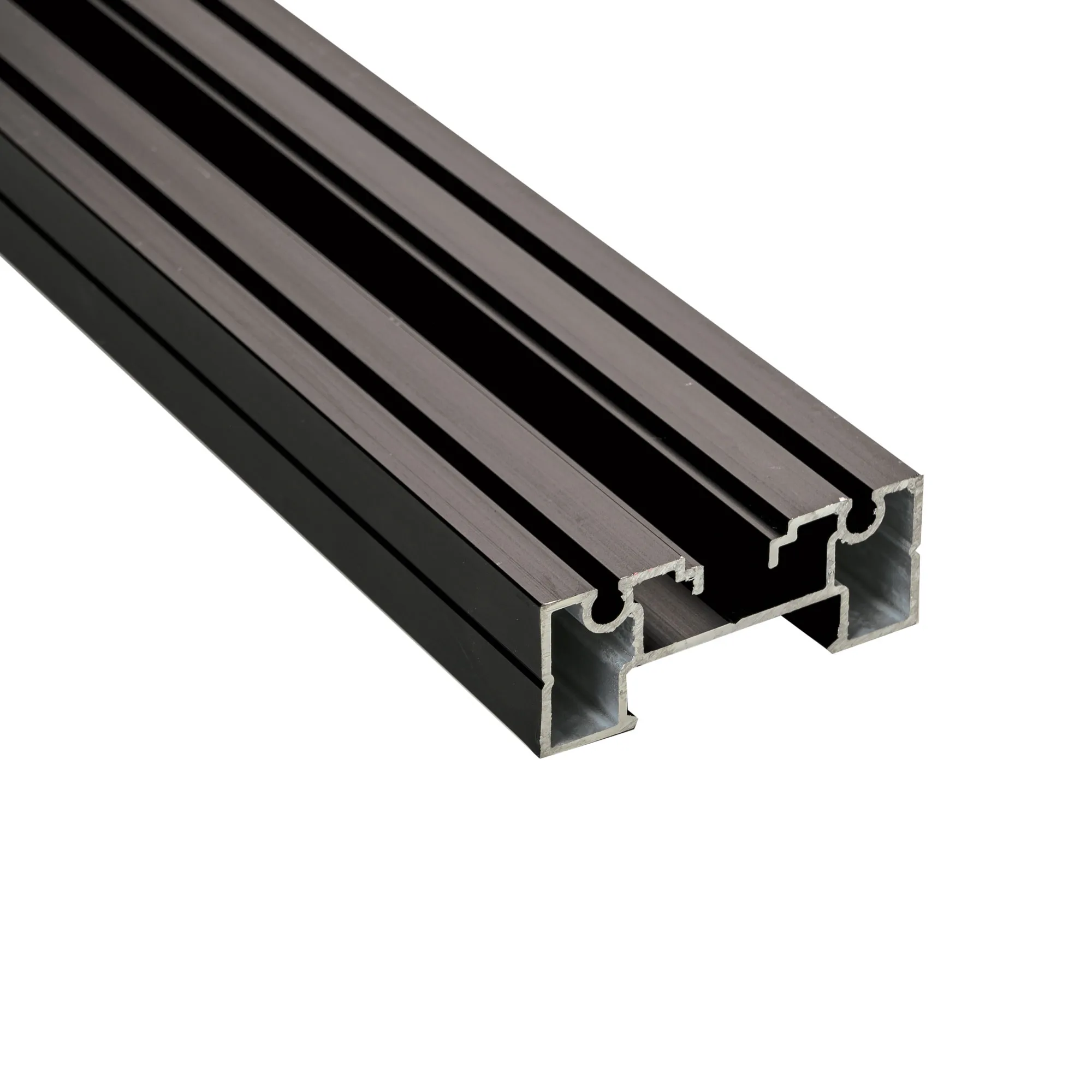

U-BRS-B

ACCESSORIES IN THE PB RANGE

GRABO

U-BRS-EPDM-2MM

U-BRS-STOP

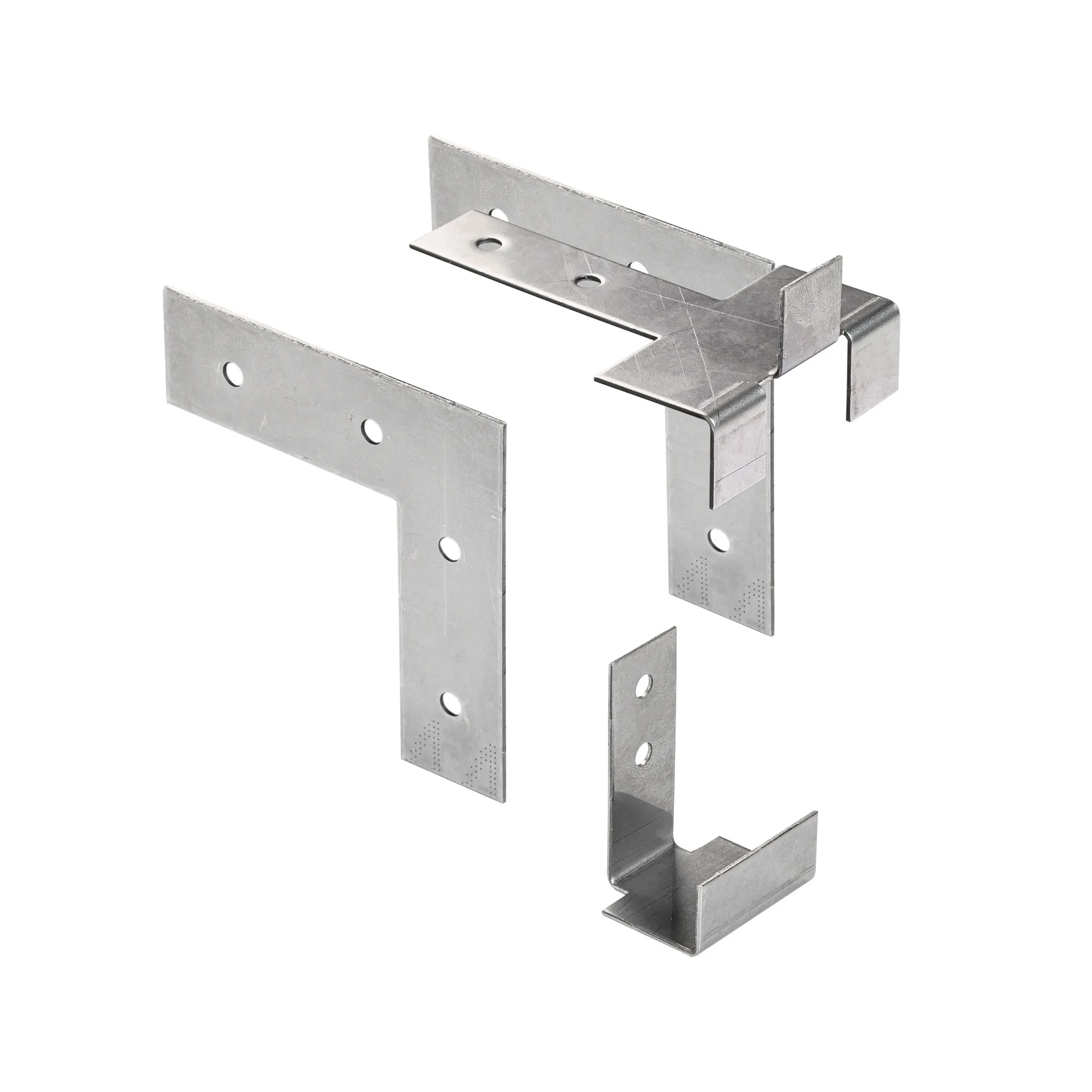

U-BRS-END

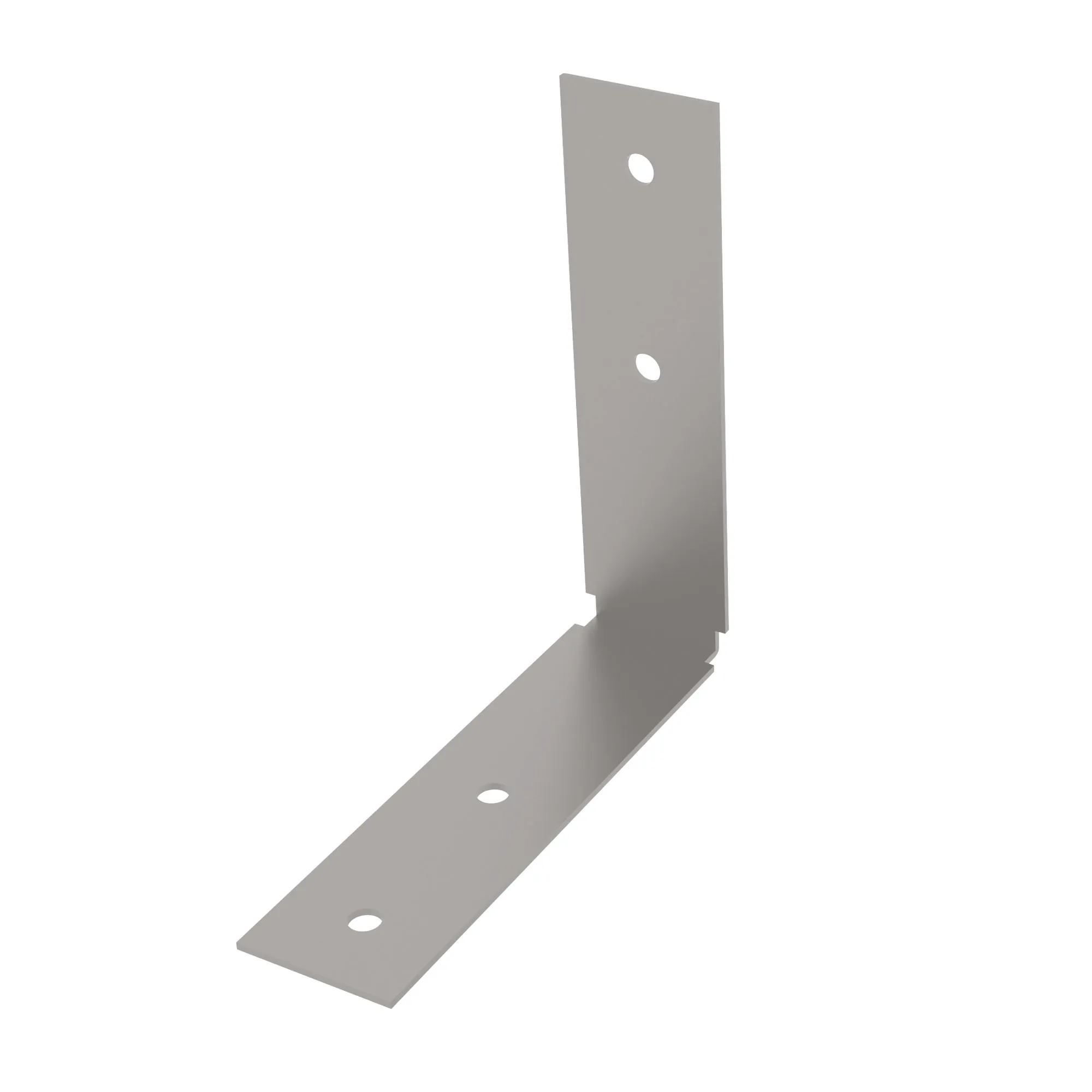

U-BRS-CONNECTOR

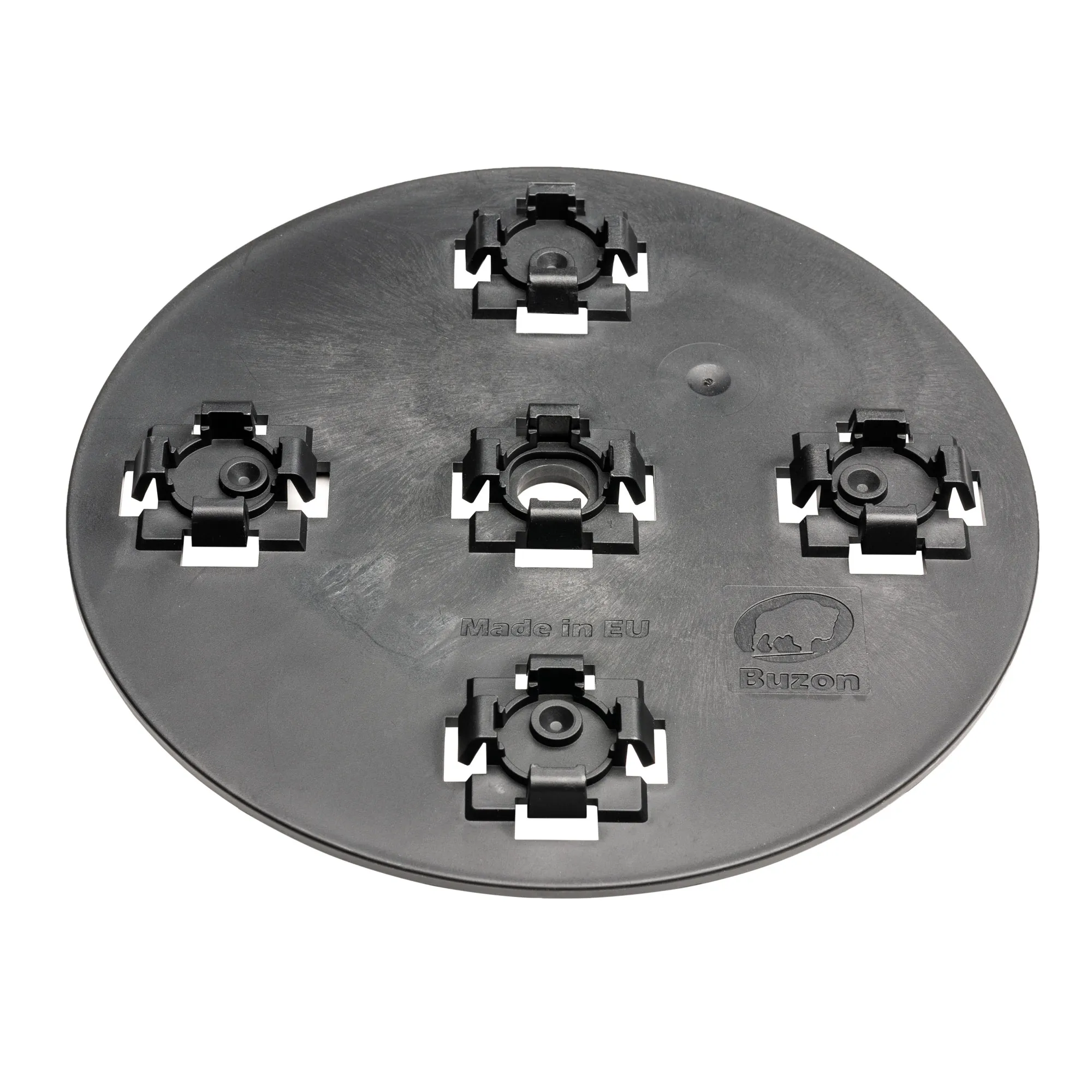

U-FIXING-PLATE-5

GRABO

U-BRS-EPDM-2MM

U-BRS-END

THE ADVANTAGES OF THE BUZON® PEDESTALS

1/13

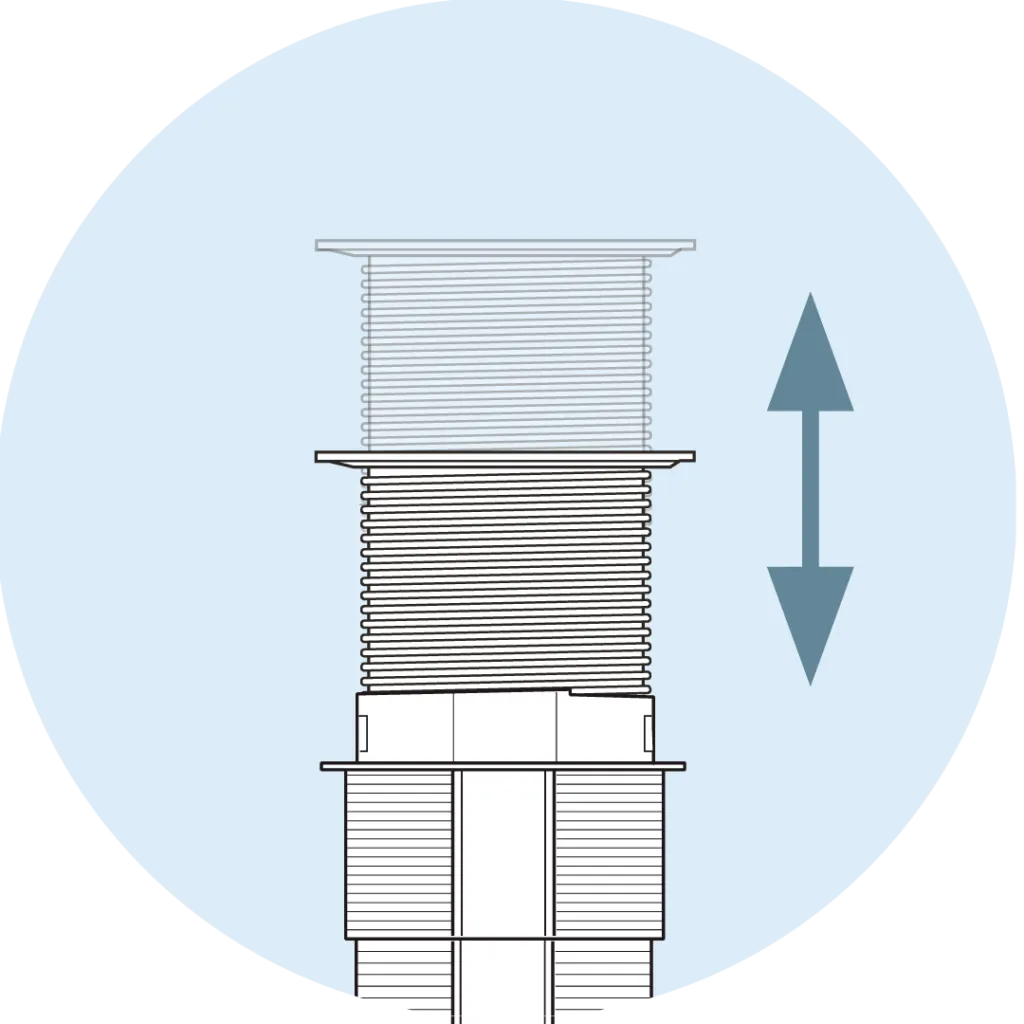

Adjustable Pedestals from 12 to 955 mm

2/13

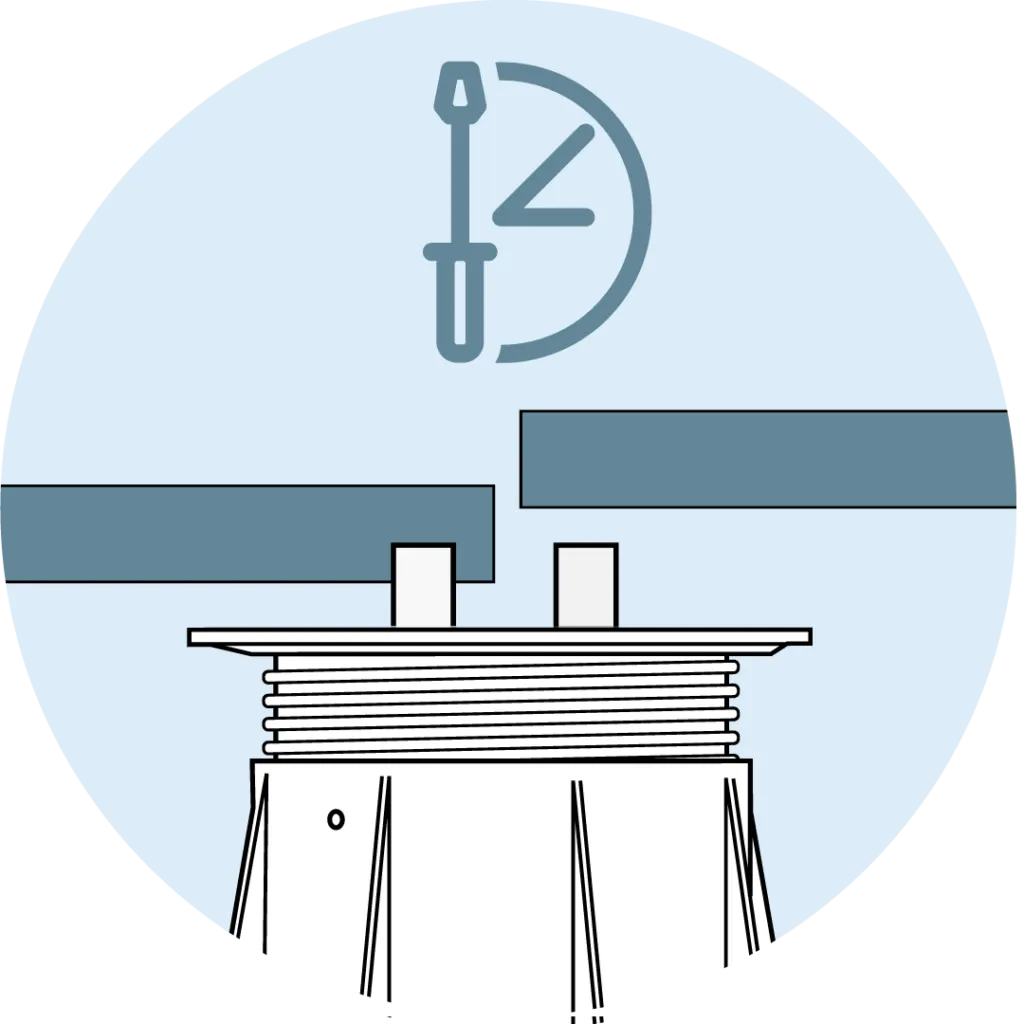

Quick and easy installation

3/13

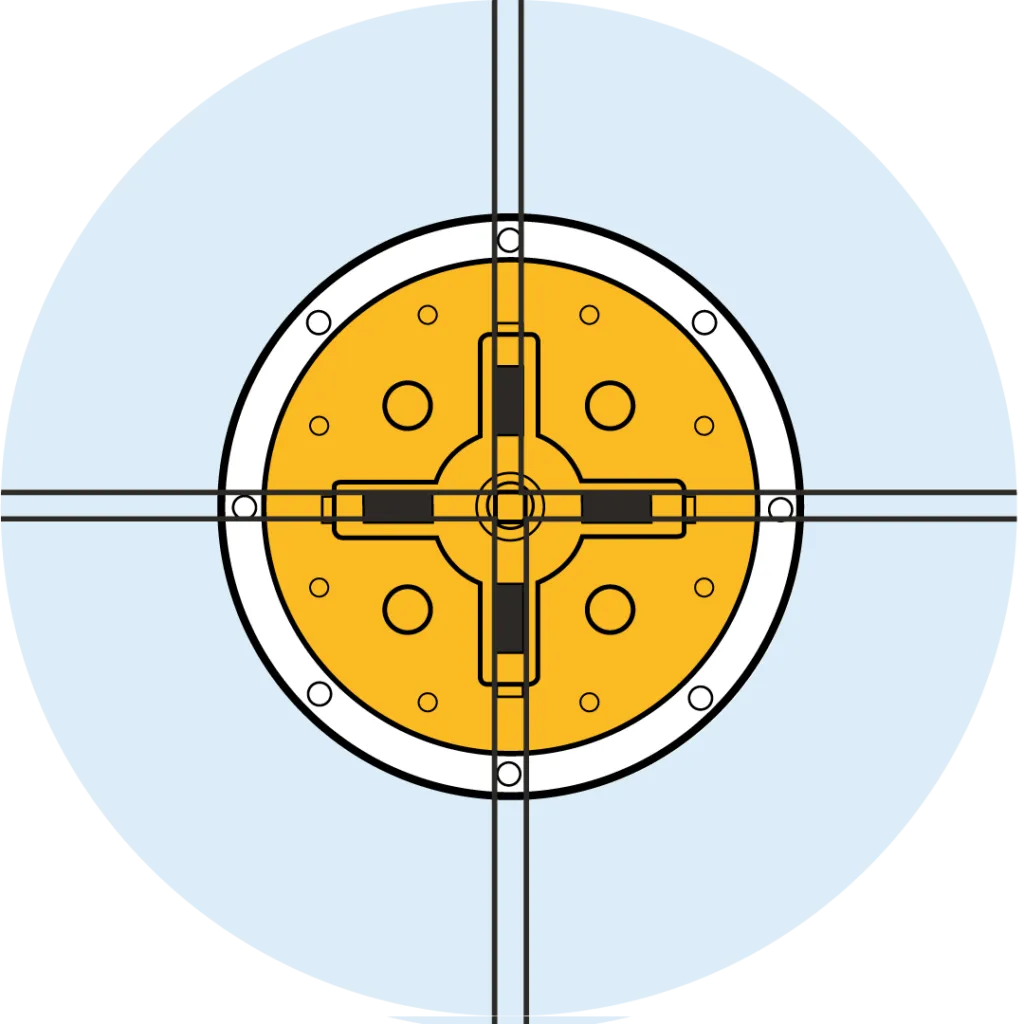

High stability thanks to a large pedestal top

4/13

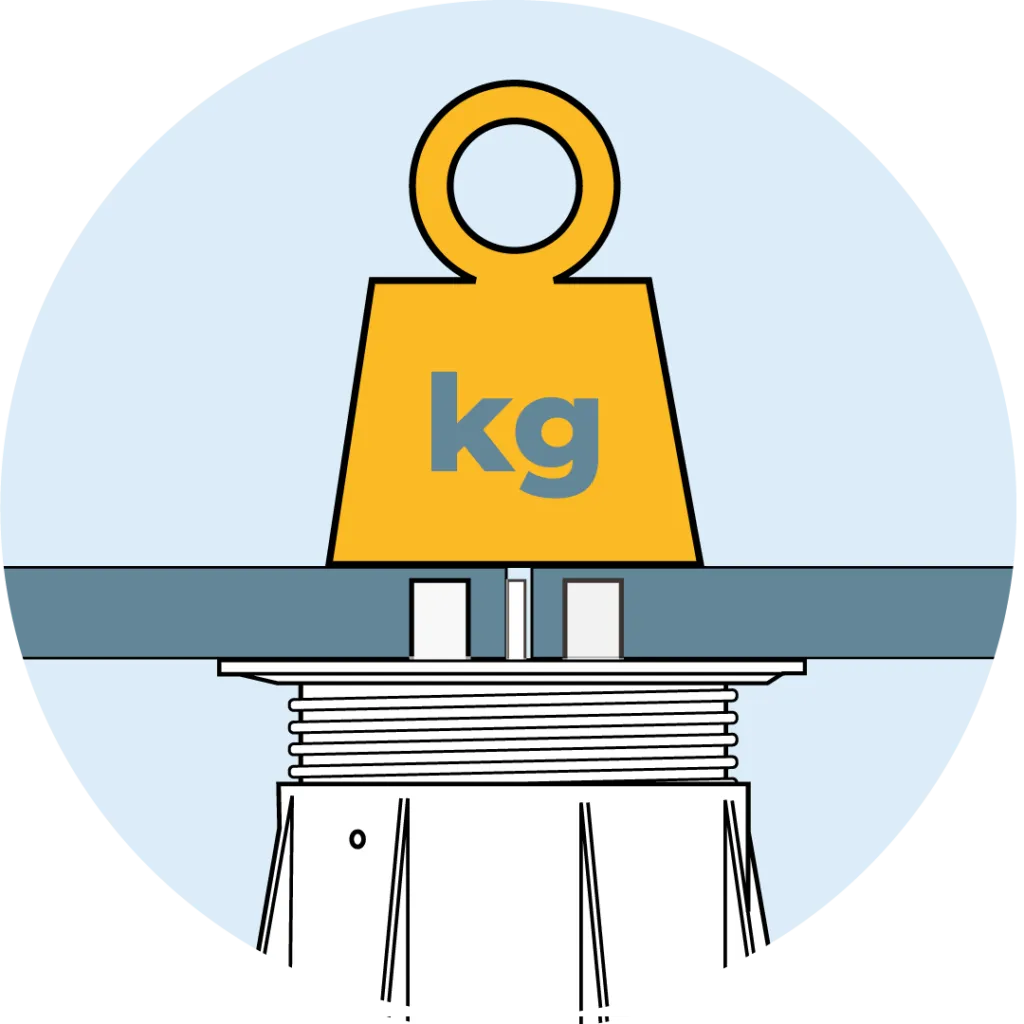

A system supporting heavy loads

5/13

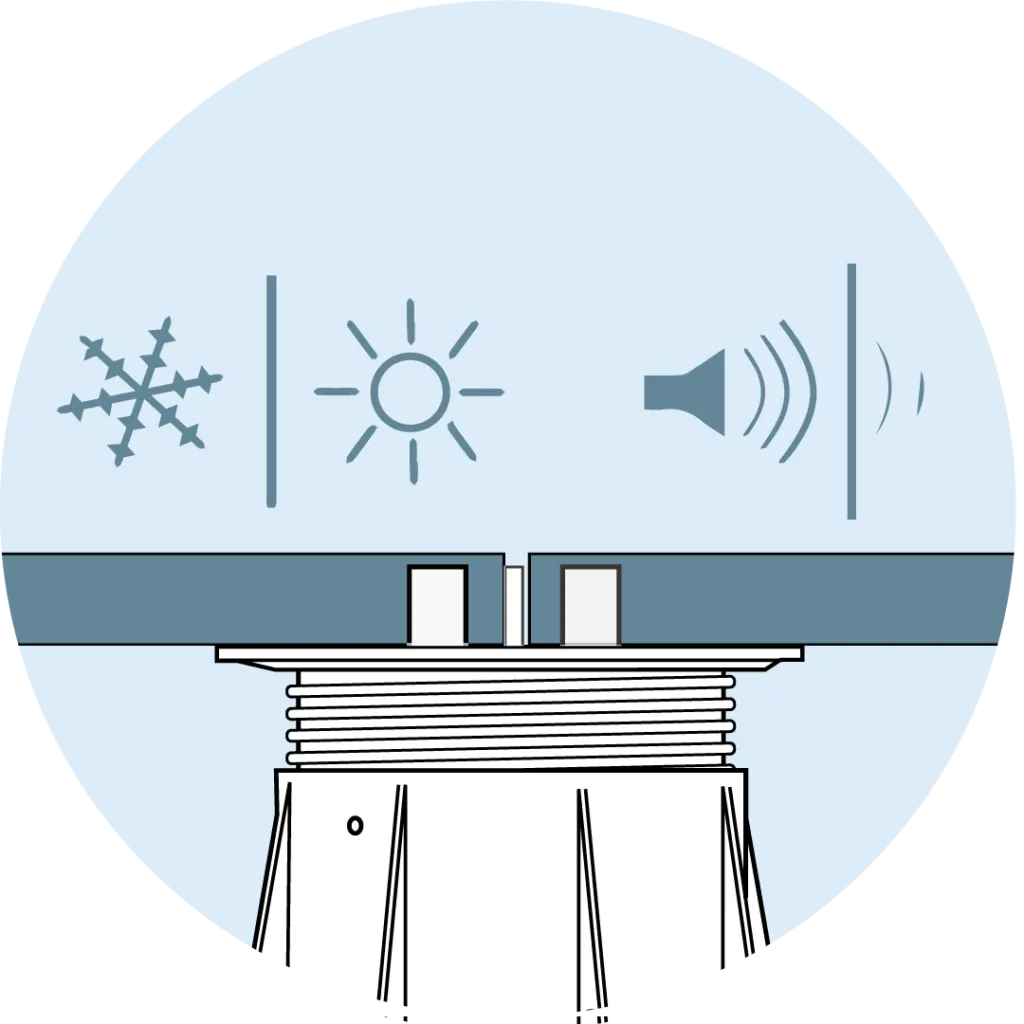

Better thermal and acoustic insulation

6/13

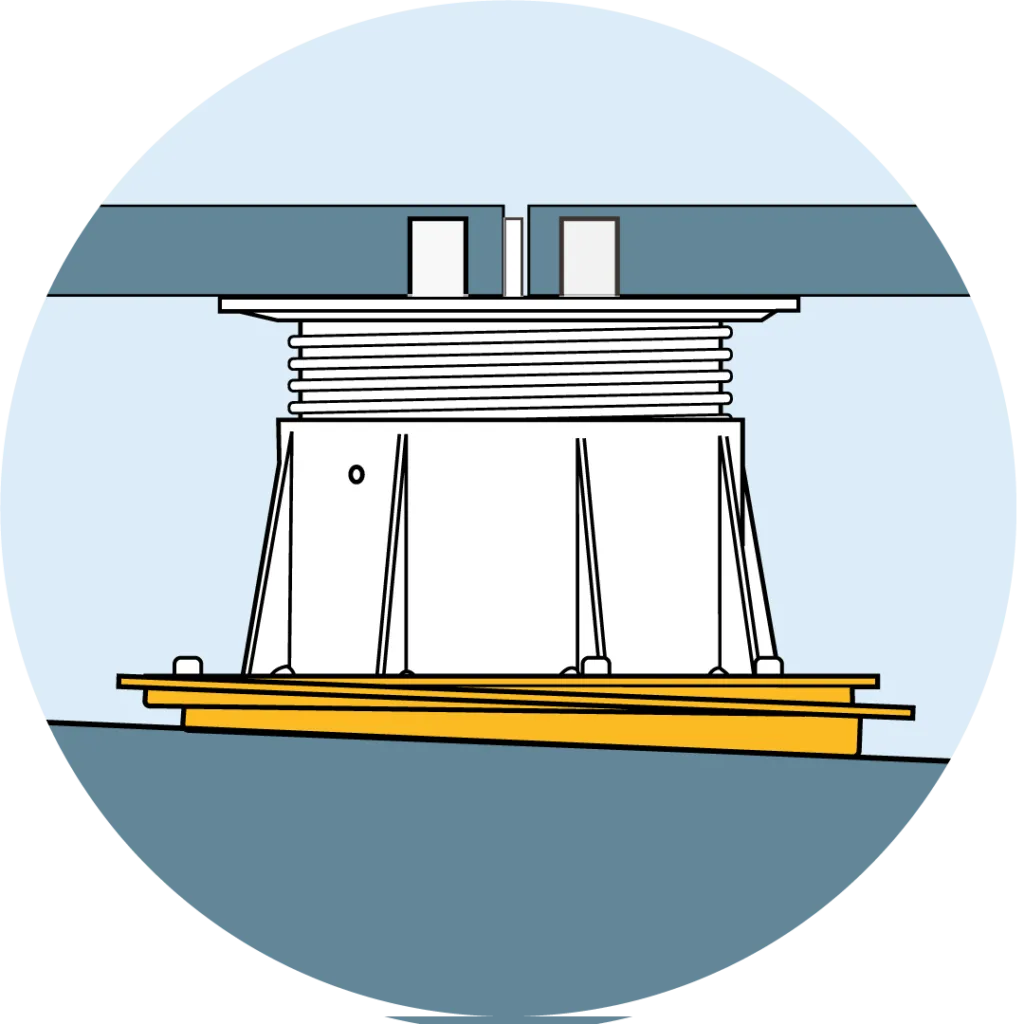

Easy and precise slope correction up to 5%

7/13

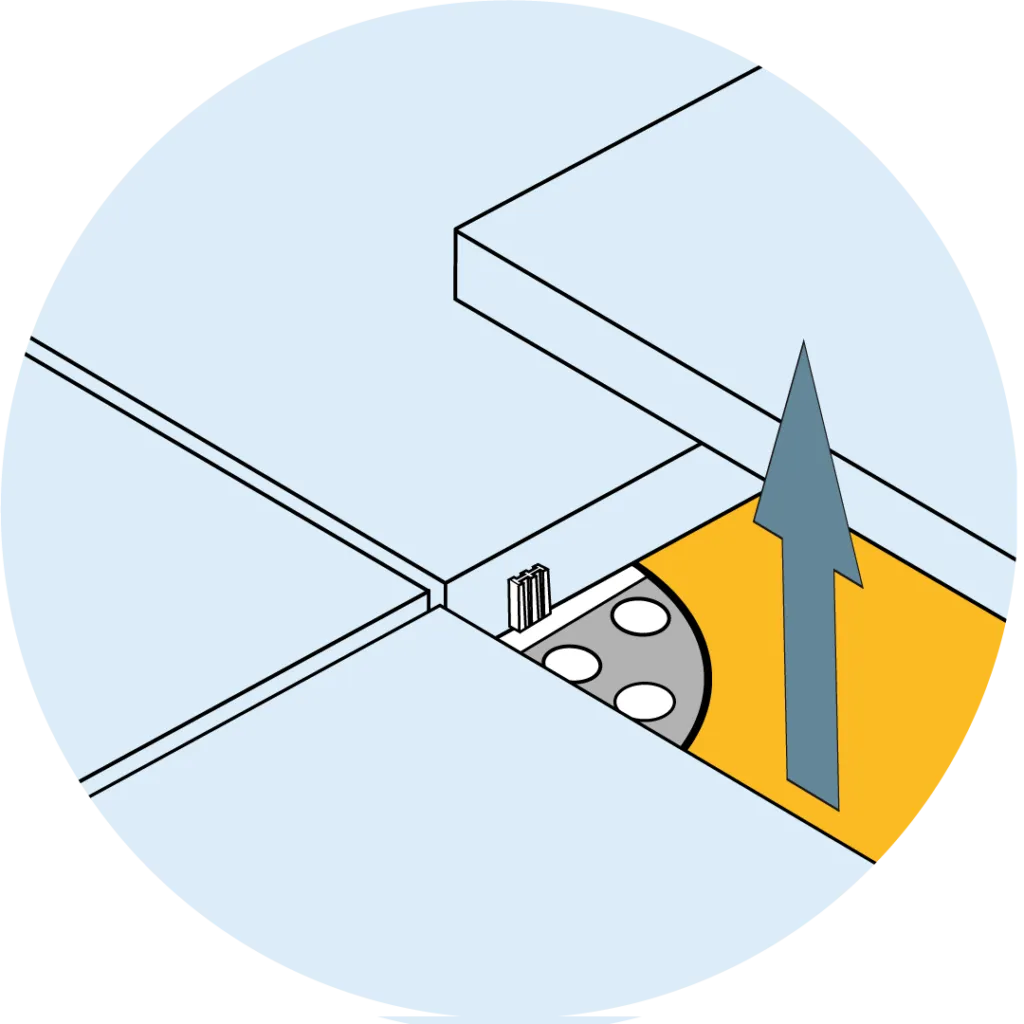

Easy access to the waterproofing membrane or substructure

8/13

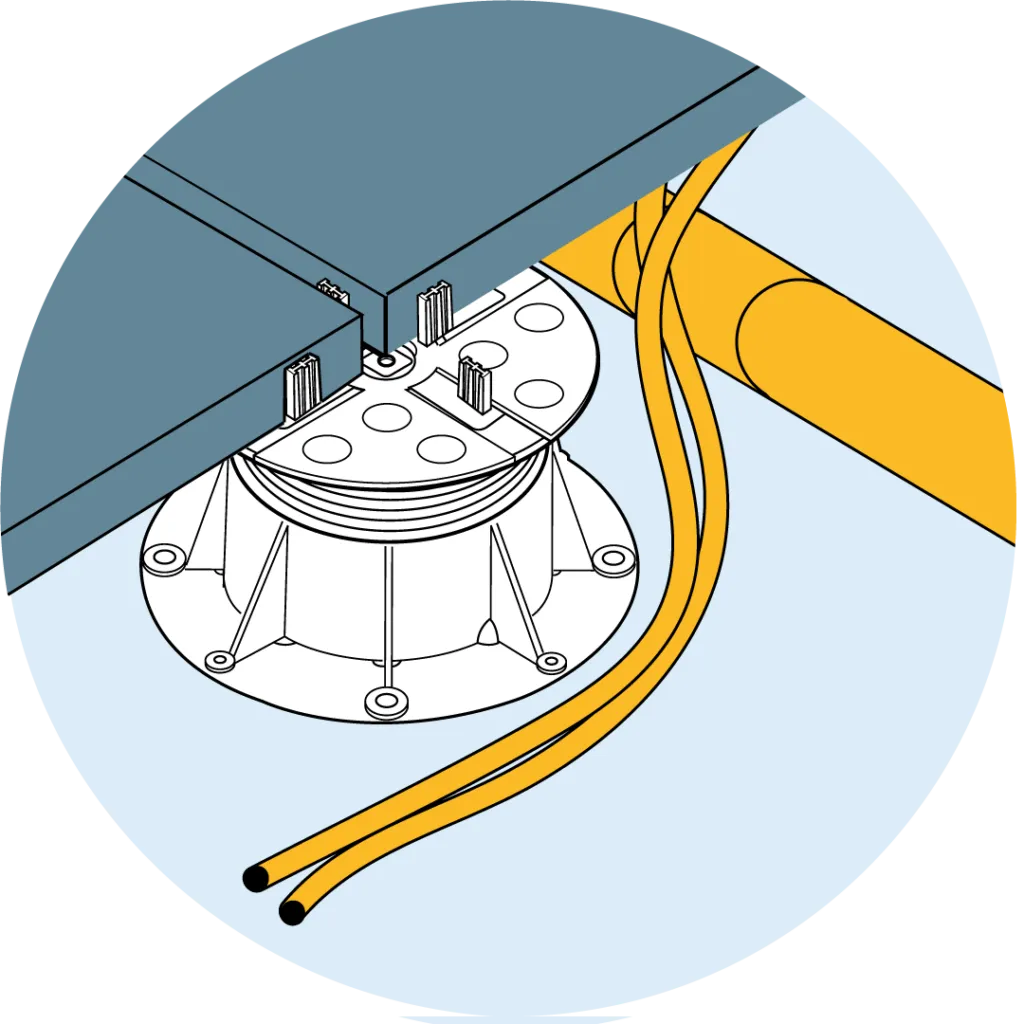

Concealing of technical equipment

9/13

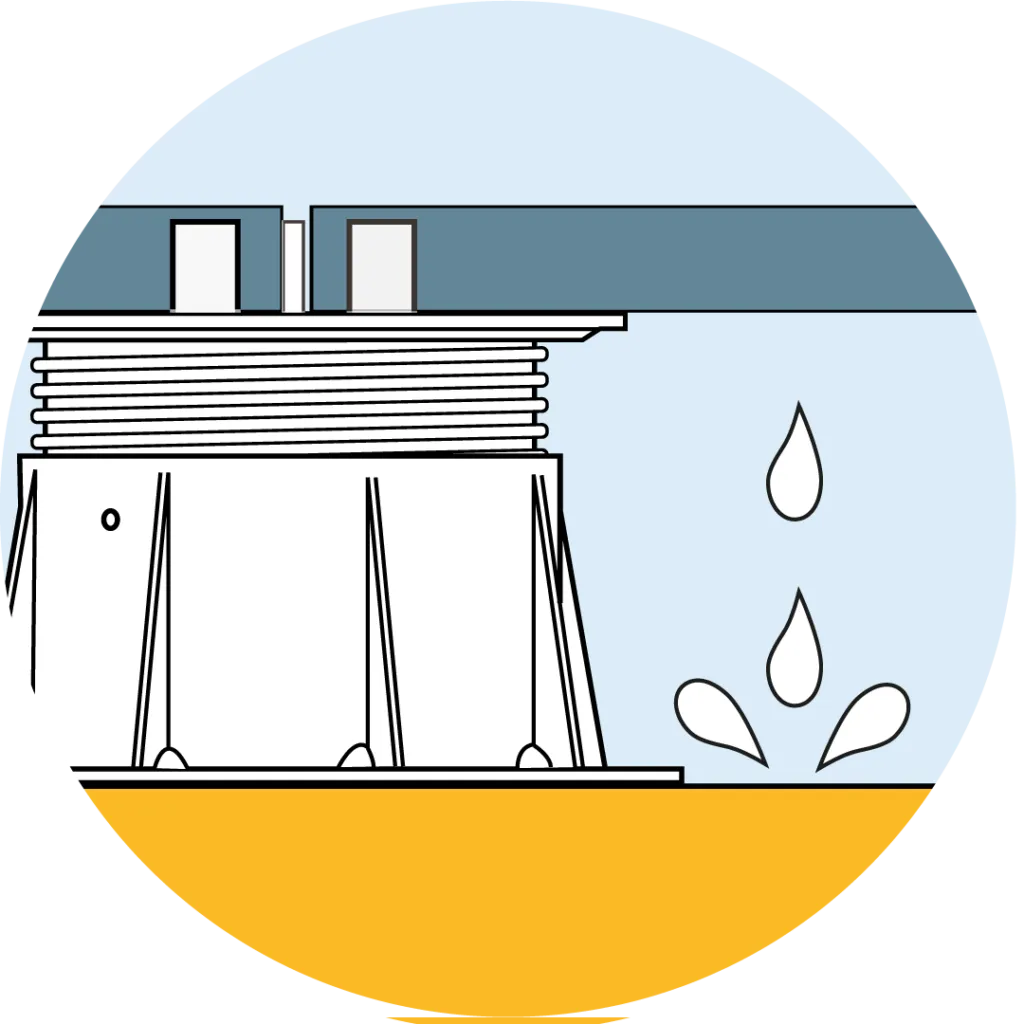

Respect of the waterproofing membrane

10/13

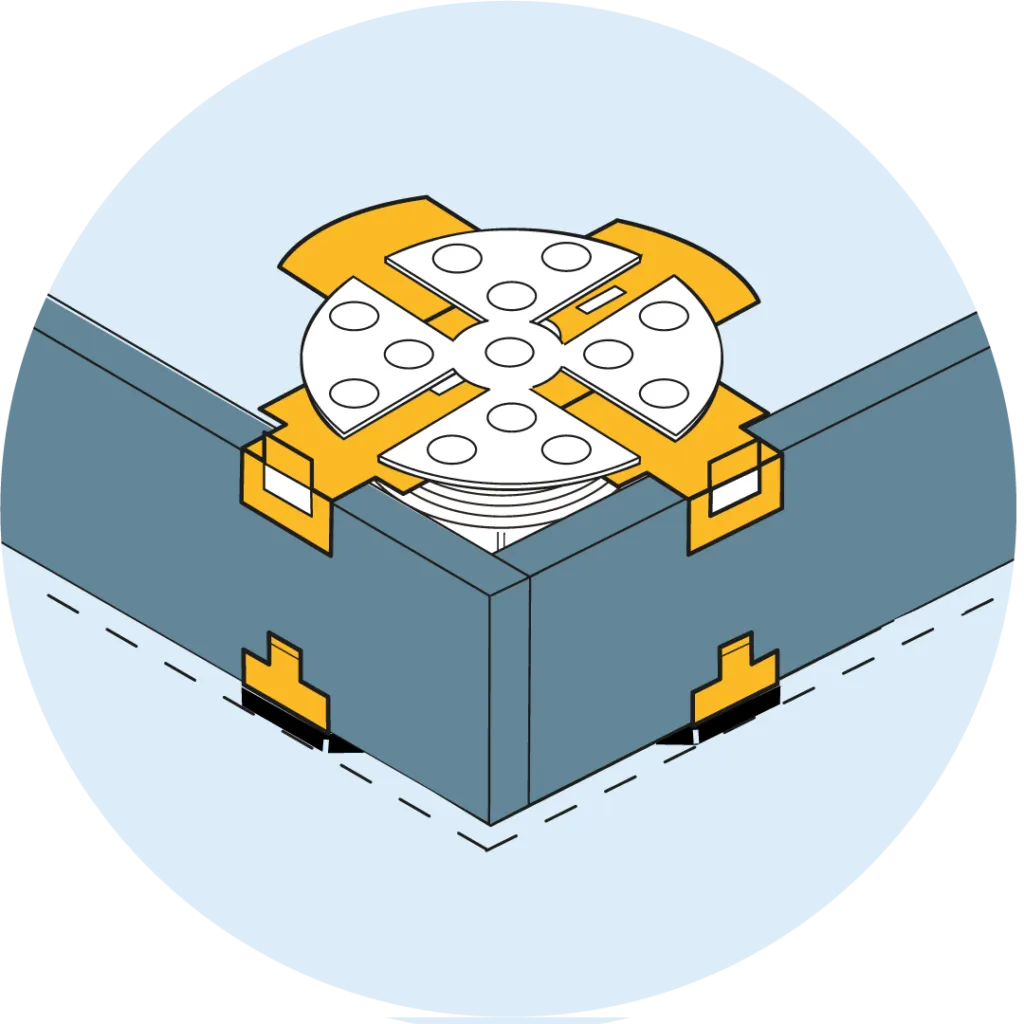

A broad range of accessories for the terrace finish

11/13

Sustainable solution

12/13

Sustainable solution

13/13

Presence of open joints avoiding all risks of cracking as compared to closed joints. Easier water evacuation

HOW MANY SUPPORTS DO YOU NEED?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Pellentesque mauris enim, congue nec ullamcorper sed, eleifend a dui. Phasellus suscipit, turpis nec dignissim iaculis, sapien libero vehicula lorem, quis gravida sapien justo et lorem.

AVERAGE NUMBER OF SUPPORTS REQUIRED PER M2 OF DECKING:*

Dimension and surface area of the terrace	20m²	50m²	100m²	1000m²
Length	5	10	10	50
Width	4	5	10	20

Paver format	Pedestals/m²	Pedestals/m²	Pedestals/m²	Pedestals/m²
40 x 40 cm	7.70	7.28	6.76	6.43
50 x50 cm	4.95	4.62	4.41	4.14
60 x 60 cm	4.00	3.60	3.24	2.94
75 x75 cm	4.90	4.36	4.21	3.71
80 x 80 cm	4.15	4.06	3.65	3.24
90 x 90 cm	6.00	5.76	5.76	5.15
100 x 100	4.95	4.62	4.41	4.14
120 x 30 cm	7.50	6.48	6.30	5.78
120 x 60 cm	4.00	3.60	3.24	2.98
90 x 45	6.00	5.76	5.76	5.15

*Information is provided as a guideline only. The number of pedestals used varies based on the specifics of each project. Buzon® cannot be held responsible for variations in quantity.
